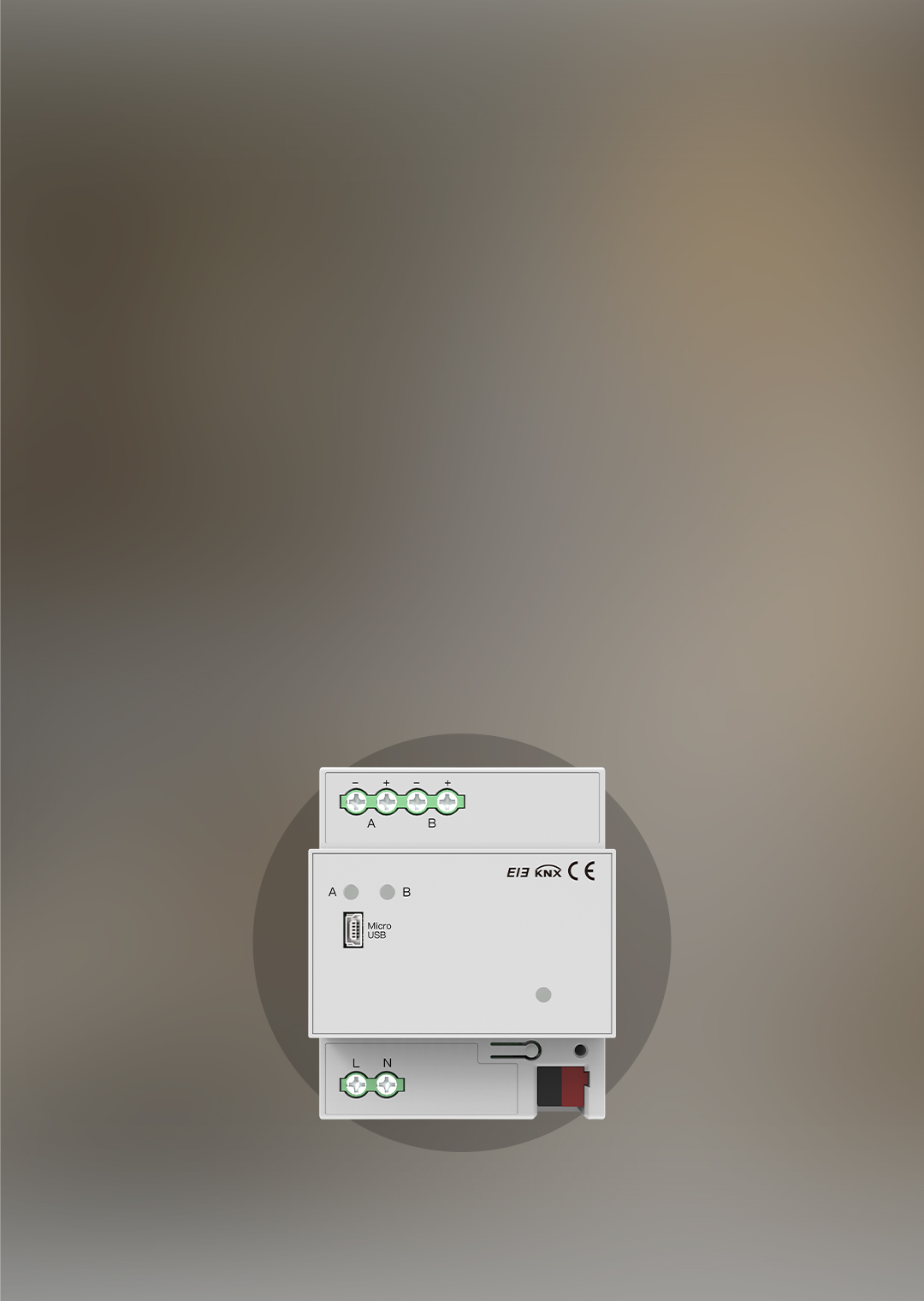

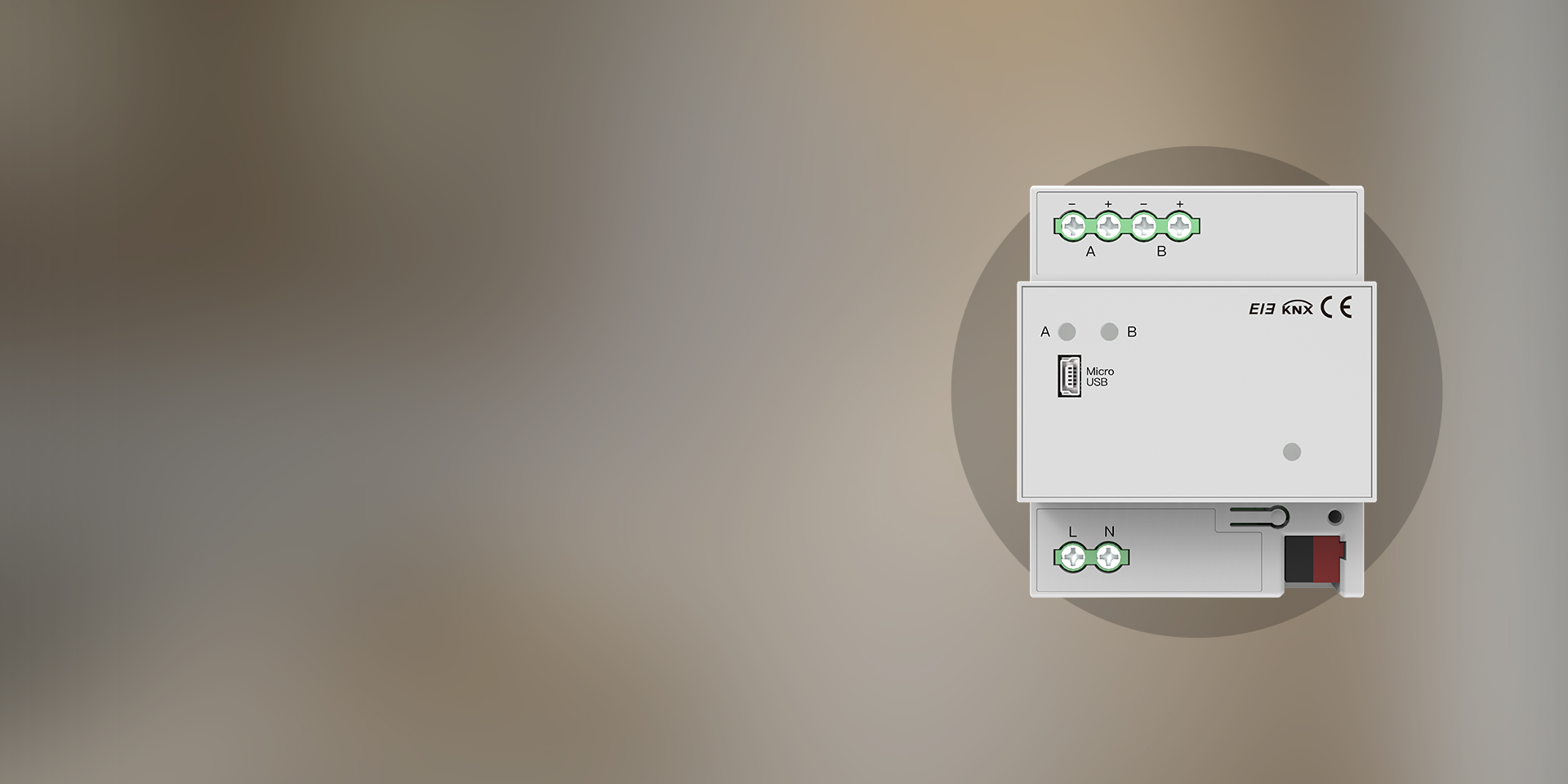

Dual-channel DALI Gateway

Seamless KNX and DALI integration for smart, effortless lighing control


Dual-channel DALI control, with up to 64 devices per channel
Supports DT6, DT8 Tc, DT8 XY, DT8 RGB
Wide voltage range design with integrated DALI bus power supply
DIN rail mounting

Specification
  • Product Model


    KXAC-B1DD2
  • Input Voltage


    21 ~ 30VDC (KNX Bus)
    100 ~ 240VAC, 50/60Hz (for DALI control)
  • Consumption Current


    <10mA (KNX Bus)
    <48mA (Mains)
  • Power Consumption


    <210mW (KNX Bus)
    <11W (Mains)
  • Output Channels


    2
  • Maximum Supply Current Output


    2×250mA
  • DALI Device Quantity


    64 per channel
  • Supported Device Types


    DT6, DT8 Tc, DT8 XY, DT8 RGB
  • DALI Voltage Output


    16VDC
  • Working Temperature


    -5 ~ 45°C
  • Working Humidity


    0 ~ 93%RH (non-condensing)
  • Product Dimensions


    90.1×72×66.4mm
  • Installation


    35mm DIN rail
