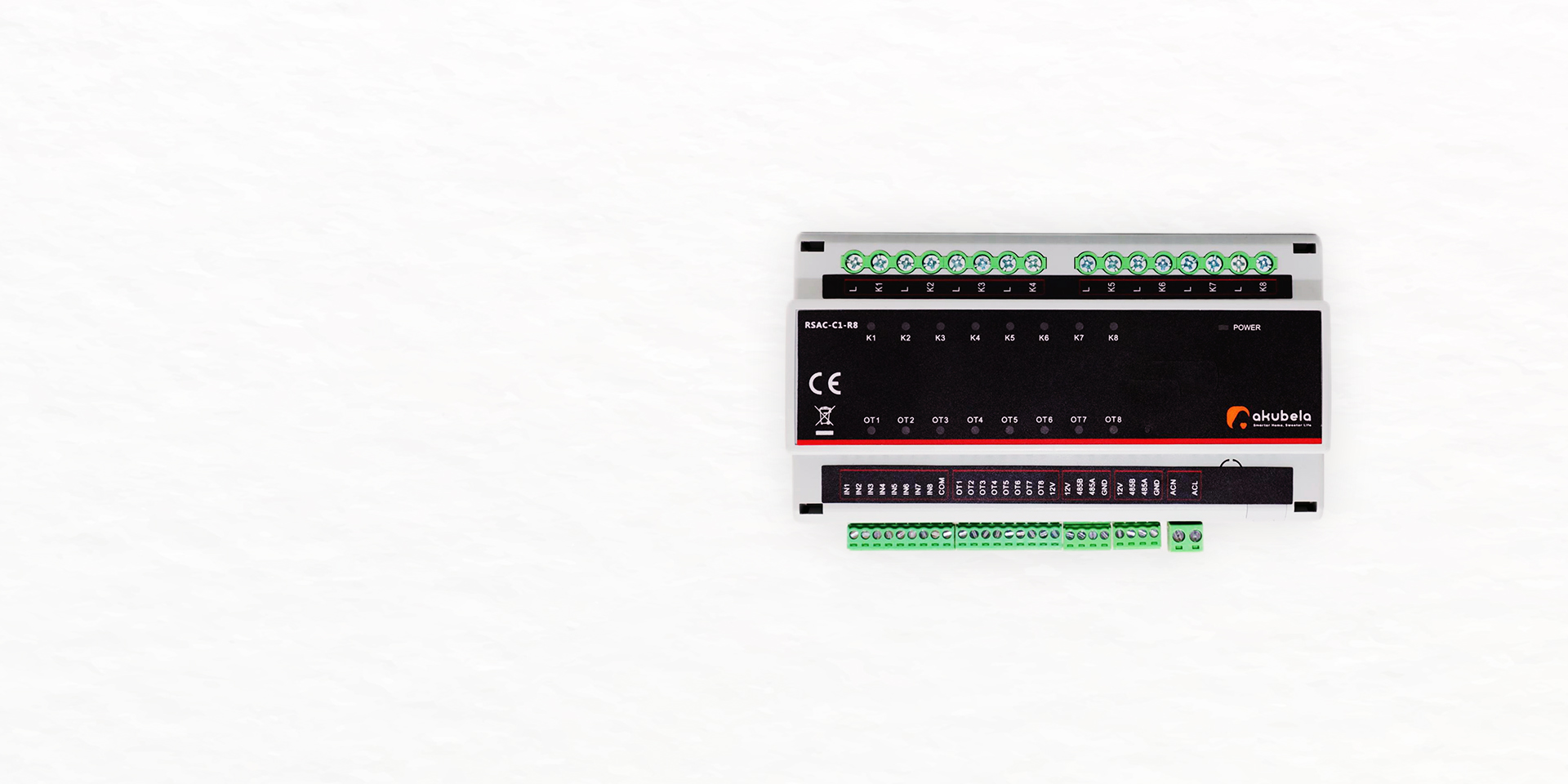

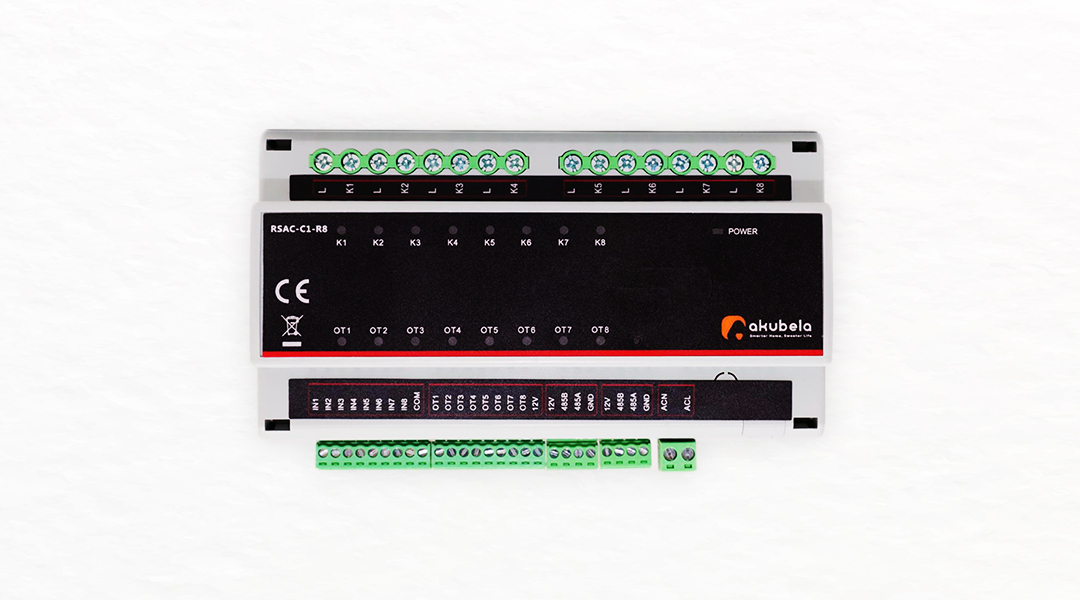

Switch Actuator (RS485)

Multifunctional controller integrating a multi-way switch and signal input


High-power relays with zero-crossing detection
DIN rail mounting
Integrated signal reception and control

Specification
  • Operating Voltage


    12VDC/2A
  • IO Input


    8 channels
  • Relay Control


    8 channels, Max 16A/channel (resistive load), Max 500W/channel (capacitive load)
  • 12V Output


    8 channels, MAX 250mA/channel
  • Operating Environment


    0℃ ~ 45℃
  • Environmental Temperature


    0% ~ 95%RH (non-condensing)
  • Material


    PVC
  • Installation Method


    Standard DIN rail mounting
  • Protection Grade


    IP20
  • Product Dimensions


    160mm×95.7mm×67mm (L×W×D)
